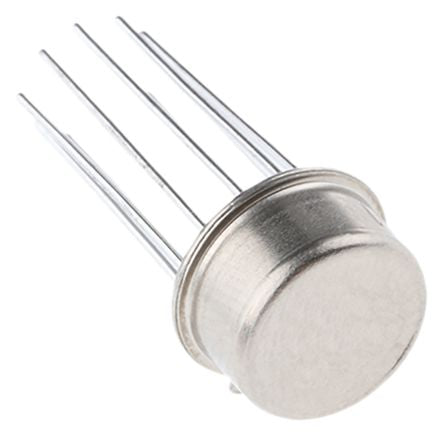

AD532JHZ Analog Devices, 4-quadrant Voltage Divider and Multiplier, 1 MHz, 10-Pin TO-100 [AD532JHZ]; 159-7727
0₫
Mã kho: 1597727
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Quadrants | 4 |
| Output Type | Single Ended |
| Number of Elements per Chip | 1 |
| Maximum Supply Current | 6 mA |
| Maximum Operating Frequency | 1 MHz |
| Maximum Dual Supply Voltage | ±18V |
| Minimum Dual Supply Voltage | ±10V |
| Mounting Type | Through Hole |
| Package Type | TO-100 |
| Pin Count | 10 |
| Dimensions | 9.4 (Diameter) x 4.7mm |
| Height | 4.7mm |
| Maximum Operating Temperature | +70 °C |
| Minimum Operating Temperature | 0 °C |
