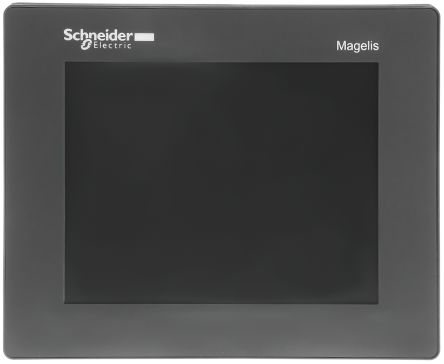

Schneider Electric STU Series Touch Screen HMI 5.7 in TFT LCD 320 x 240pixels [HMISTU855]; 721-1474
0₫
Mã kho: 7211474
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Manufacturer Series | STU |
| Display Type | TFT LCD |
| Display Size | 5.7 in |
| Display Resolution | 320 x 240pixels |
| Display Colour | Colour |
| Number of Ports | 3 |
| Port Type | COM1, USB 2.0 |
| Processor Type | RISC ARM9 |
| Processor Speed | 333MHz |
| Onboard Memory | 16 (Application) MB, 128 (Back Up) kB |
| Backlighting | Yes |
| Supply Voltage | 24 V dc |
| Maximum Operating Temperature | +50°C |
| Length | 163mm |
| Width | 129.15mm |
| Depth | 56.5mm |
| Dimensions | 163 x 129.15 x 56.5 mm |
| Minimum Operating Temperature | 0°C |
| IP Rating | IP20, IP65 |
