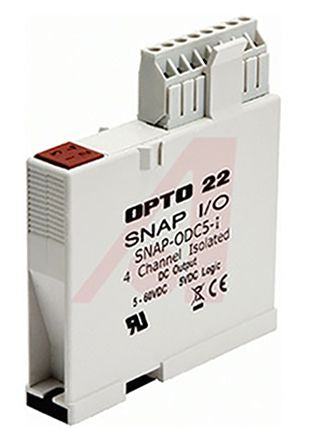

Opto 22 SNAP PLC I/O Module 4 Outputs 3 A 5 → 60 V dc, 82.55 x 18.29 x 90.17 mm [SNAP-ODC5-I]; 889-1025
by Opto 22
0₫
Mã kho: 8891025
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Manufacturer Series | SNAP |
| Number of Outputs | 4 |
| Output Type | Digital DC Voltage |
| For Use With | SNAP PAC System |
| Number of I/O | 4 |
| Voltage Category | 5 → 60 V dc |
| Output Current | 0.125 |
| Module Type | Digital DC Output |
| Length | 82.55mm |
| Width | 18.29mm |
| Depth | 90.17mm |
| Dimensions | 82.55 x 18.29 x 90.17 mm |
| Input Current | 50mA |
| Minimum Operating Temperature | -20°C |
| Connection to Host | Backplane |
| Application | Communication |
| Maximum Operating Temperature | +70°C |
| Special Features | Channel-Specific LEDs |
| Supply Voltage | 5 V dc |
| Mounting Type | Snap-In |
