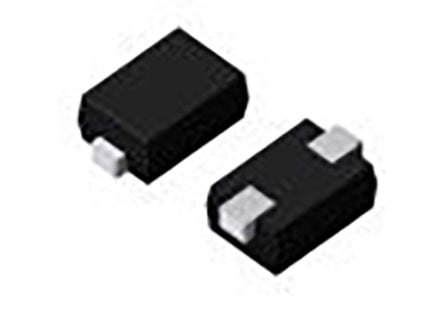

ROHM RN771VTE-17 PIN Diode, 50mA, 50V, 2-Pin SC-90A, SOD-323FL, UMD2 [RN771VTE-17]; 178-0394
by ROHM
0₫
Mã kho: 1780394
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Number of Elements per Chip | 1 |
| Maximum Forward Current | 50mA |
| Maximum Reverse Voltage | 50V |
| Maximum Forward Voltage | 1V |
| Mounting Type | Surface Mount |
| Package Type | SC-90A, SOD-323FL, UMD2 |
| Pin Count | 2 |
| Maximum Diode Capacitance | 0.9pF |
| Maximum Series Resistance @ Maximum IF | 7 Ω @ 10 mA |
| Dimensions | 1.8 x 1.35 x 0.9mm |
| Height | 0.9mm |
| Length | 1.8mm |
| Width | 1.35mm |
| Maximum Operating Temperature | +150 °C |
