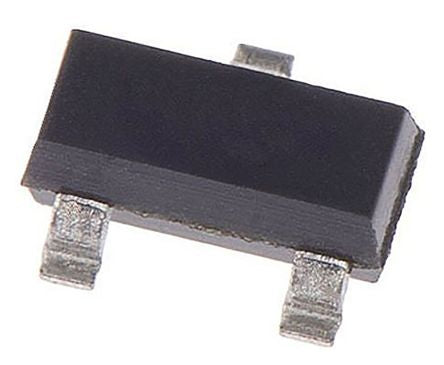

ON Semiconductor 1SV233-TB-E PIN Diode, 50mA, 50V, 3-Pin CP [1SV233-TB-E]; 163-1981
0₫
Mã kho: 1631981
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Number of Elements per Chip | 1 |
| Application | AGC |
| Maximum Forward Current | 50mA |
| Maximum Reverse Voltage | 50V |
| Maximum Forward Voltage | 950mV |
| Mounting Type | Surface Mount |
| Package Type | CP |
| Pin Count | 3 |
| Maximum Diode Capacitance | 0.23pF |
| Maximum Series Resistance @ Maximum IF | 5 Ω @ 10 mA |
| Dimensions | 2.9 x 1.5 x 1.1mm |
| Height | 1.1mm |
| Length | 2.9mm |
| Maximum Operating Temperature | +125 °C |
| Width | 1.5mm |
