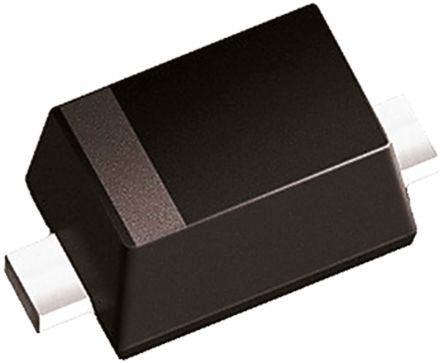

Infineon BAR6502VH6327XTSA1 PIN Diode, 100mA, 30V, 2-Pin SC-79 [BAR6502VH6327XTSA1]; 165-5585
by Infineon
0₫
Mã kho: 1655585
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Application | Band Switching |
| Number of Elements per Chip | 1 |
| Maximum Forward Current | 100mA |
| Maximum Reverse Voltage | 30V |
| Typical Carrier Life Time | 80ns |
| Maximum Forward Voltage | 1V |
| Mounting Type | Surface Mount |
| Package Type | SC-79 |
| Pin Count | 2 |
| Maximum Diode Capacitance | 0.9pF |
| Maximum Series Resistance @ Maximum IF | 0.95 Ω@ 5 mA |
| Dimensions | 1.2 x 0.8 x 0.55mm |
| Height | 0.55mm |
| Length | 1.2mm |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -55 °C |
| Width | 0.8mm |
