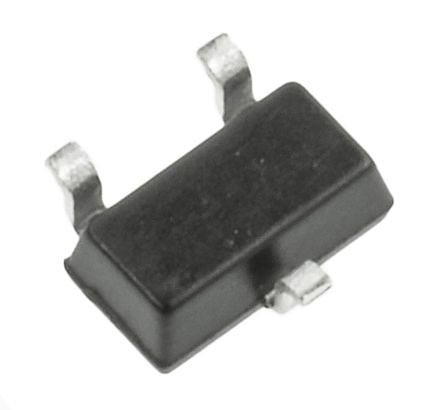

Infineon BAR6404WH6327XTSA1 Dual Series PIN Diode, 100mA, 150V, 3-Pin SOT-323 (SC-70) [BAR6404WH6327XTSA1]; 165-5617
by Infineon
0₫
Mã kho: 1655617
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Series |
| Application | RF Attenuator |
| Number of Elements per Chip | 2 |
| Maximum Forward Current | 100mA |
| Maximum Reverse Voltage | 150V |
| Typical Carrier Life Time | 1550ns |
| Maximum Forward Voltage | 1.1V |
| Mounting Type | Surface Mount |
| Package Type | SOT-323 (SC-70) |
| Pin Count | 3 |
| Maximum Diode Capacitance | 0.35pF |
| Maximum Series Resistance @ Maximum IF | 20 Ω@ 1 mA |
| Dimensions | 2 x 1.25 x 0.8mm |
| Height | 0.8mm |
| Length | 2mm |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -55 °C |
| Width | 1.25mm |
