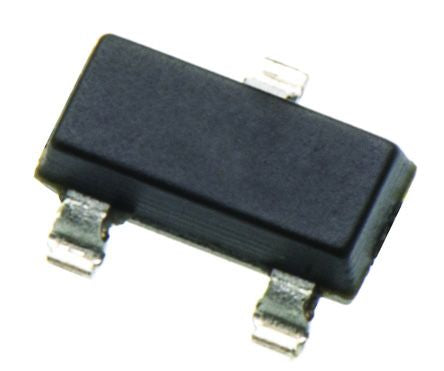

Infineon BAR6305E6327HTSA1 Dual Common Cathode PIN Diode, 100mA, 50V, 3-Pin SOT-23 [BAR6305E6327HTSA1]; 110-7177
by Infineon
0₫
Mã kho: 1107177
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Common Cathode |
| Number of Elements per Chip | 2 |
| Application | Switch |
| Maximum Forward Current | 100mA |
| Maximum Reverse Voltage | 50V |
| Typical Carrier Life Time | 75ns |
| Maximum Forward Voltage | 1.2V |
| Mounting Type | Surface Mount |
| Package Type | SOT-23 |
| Pin Count | 3 |
| Maximum Diode Capacitance | 0.3pF |
| Maximum Series Resistance @ Maximum IF | 1 Ω @ 10 mA |
| Dimensions | 2.9 x 1.3 x 0.9mm |
| Height | 0.9mm |
| Length | 2.9mm |
| Width | 1.3mm |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +125 °C |
