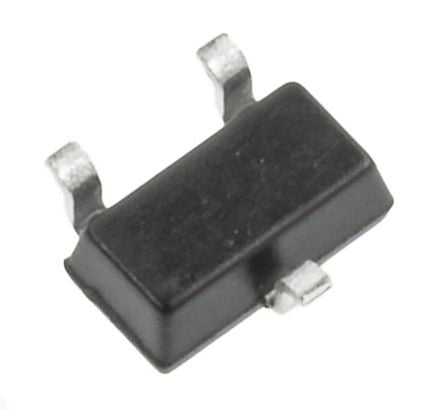

Infineon BAR6304WH6327XTSA1 Dual Series PIN Diode, 100mA, 50V, 3-Pin SOT-323 (SC-70) [BAR6304WH6327XTSA1]; 165-5619
by Infineon
0₫
Mã kho: 1655619
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Series |
| Application | High Speed Switching |
| Number of Elements per Chip | 2 |
| Maximum Forward Current | 100mA |
| Maximum Reverse Voltage | 50V |
| Typical Carrier Life Time | 75ns |
| Maximum Forward Voltage | 1.2V |
| Mounting Type | Surface Mount |
| Package Type | SOT-323 (SC-70) |
| Pin Count | 3 |
| Maximum Diode Capacitance | 0.3pF |
| Maximum Series Resistance @ Maximum IF | 2 Ω@ 5 mA |
| Dimensions | 2 x 1.25 x 0.8mm |
| Height | 0.8mm |
| Length | 2mm |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -55 °C |
| Width | 1.25mm |
