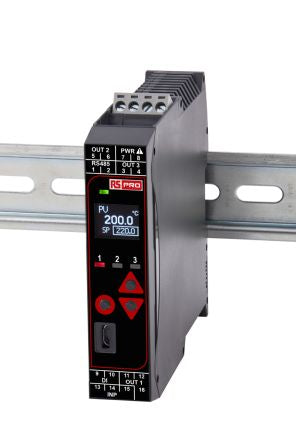

RS PRO DIN Rail PID Temperature Controller, 22.5 x 110mm 3 Input, 3 Output Relay, Relay-CO, SSR; 144-8679
by RS PRO
0₫
Mã kho: 1448679
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Output Type | Relay, Relay-CO, SSR |
Supply Voltage | 24 V ac/dc |
Size | 22.5 x 110mm |
Number of Inputs | 1 |
Number of Outputs | 3 |
Minimum Operating Temperature | 0°C |
Maximum Operating Temperature | +55°C |
Control Type | ON/OFF, PID Controller |
Communication Module Available | Yes |
Display Type | OLED |
IP Rating | IP20 |
Panel Depth | 123mm |
Mounting Type | DIN Rail |
Display Colour | Black |
Termination Type | Screw |
Input Type | DC Current, DC Voltage, RTD, Thermocouple |
