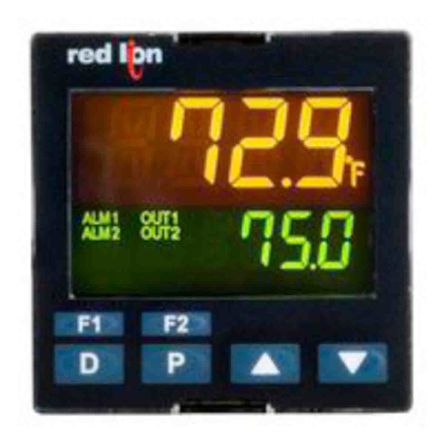

PID CONTROLLER 1/16 DIN LINEAR V OUT DC [PXU400B0]; 195-9217
by Red Lion
0₫
Mã kho: 1959217
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Type | 0-10 V dc |
| Supply Voltage | 24 V dc |
| Size | 48 x 48mm |
| Number of Outputs | 1 |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | +50°C |
| Temperature Range | -328 → +1472 (TXK Type) °F, -328 → +1562 (L Type) °F, -328 → +2372 (K Type) °F, -328 → +2372 (N Type) °F, -328 → +752 (T Type) °F, -328 → +932 (U Type)°F, -200 → +1300 (K Type) °C, -200 → +1300 (N Type) °C, -200 → +400 (T Type) °C, -200 → +500 (U Type) °C, -200 → +800 (TXK Type) °C, -200 → +850 (L Type) °C, -148 → +2192 (J Type) °F, -100 → +1200 (J Type) °C, 0 → +1700 (R Type) °C, 0 → +1700 (S Type) °C, 0 → +600 (E Type) °C, +32 → +1112 (E Type) °F, +32 → +3092 (R Type) °F, +32 → +3092 (S Type) °F, +100 → +1800 (B Type) °C, +212 → +3272 (B Type) °F |
| Control Type | PID Controller |
| Communication Module Available | Yes |
| Display Type | LCD |
| IP Rating | IP65 |
| Termination Type | Screw |
| Panel Depth | 80mm |
| Input Type | Analogue |
| Mounting Type | Panel Mount |
| Series | PXU |
