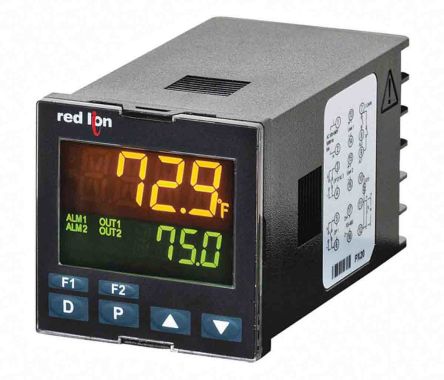

![Red Lion PXU21A20 1959203](http://nguyenxuong.com/cdn/shop/products/R1959203-01_444x380.jpg?v=1594233858)
PIDCONTRL 1/16DIN UNV INPT SS OUTP ACRLY [PXU21A20]; 195-9203
by Red Lion
0₫
Mã kho: 1959203
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Output Type | Logic/SSR, Relay |
Supply Voltage | 100 → 240 V ac |
Size | 48 x 48mm |
Number of Inputs | 2 |
Number of Outputs | 2 |
Minimum Operating Temperature | 0°C |
Maximum Operating Temperature | +50°C |
Temperature Range | -328 → +1472 (TXK Type) °F, -328 → +1562 (L Type) °F, -328 → +2372 (K Type) °F, -328 → +2372 (N Type) °F, -328 → +752 (T Type) °F, -328 → +932 (U Type)°F, -200 → +1300 (K Type) °C, -200 → +1300 (N Type) °C, -200 → +400 (T Type) °C, -200 → +500 (U Type) °C, -200 → +800 (TXK Type) °C, -200 → +850 (L Type) °C, -148 → +2192 (J Type) °F, -100 → +1200 (J Type) °C, 0 → +1700 (R Type) °C, 0 → +1700 (S Type) °C, 0 → +600 (E Type) °C, +32 → +1112 (E Type) °F, +32 → +3092 (R Type) °F, +32 → +3092 (S Type) °F, +100 → +1800 (B Type) °C, +212 → +3272 (B Type) °F |
Control Type | PID Controller |
Communication Module Available | Yes |
Display Type | LCD |
IP Rating | IP65 |
Termination Type | Screw |
Series | PXU |
Input Type | Analogue |
Mounting Type | Panel Mount |
Panel Depth | 80mm |
