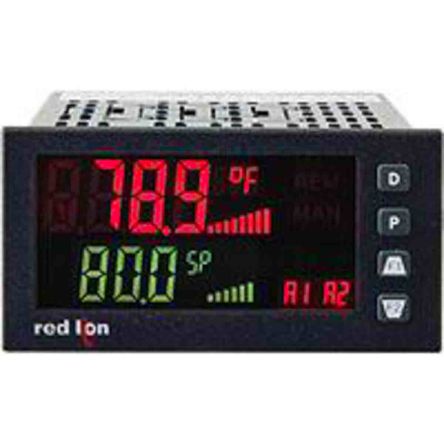

TEMP/PROCESS PROFILE CONTROLLER HORIZNTL [PX2CHZ00]; 195-9192
by Red Lion
0₫
Mã kho: 1959192
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Type | Analogue |
| Supply Voltage | 21.6 → 250 V dc, 40 → 250 V ac |
| Size | 49.53 x 96.52mm |
| Number of Inputs | 1 |
| Number of Outputs | 1 |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | +50°C |
| Temperature Range | -200 → +1250 (K Type) °C, -200 → +1300 (N Type) °C, -200 → +400 (T Type) °C, -200 → +750 (E Type) °C, -200 → +760 (J Type) °C, 0 → +1768 (R Type) °C, 0 → +1768 (S Type) °C, 0 → +2315 (C Type) °C, +150 → +300 (B Type) °C, +300 → +1820 (B Type) °C |
| Control Type | PID Controller |
| Communication Module Available | Yes |
| Display Type | LCD |
| IP Rating | IP20, IP65 |
| Panel Depth | 105mm |
| Input Type | Analogue |
| Series | PX2CH |
| Mounting Type | Panel Mount |
| Termination Type | Screw |
