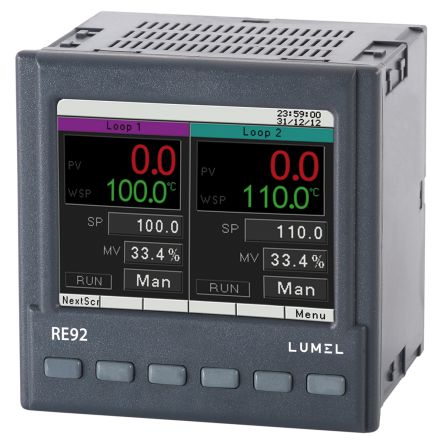

Lumel RE92 Panel Mount PID Temperature Controller, 96 x 96mm, 3 Output Analogue, Binary [RE92 2211000E0]; 123-6798
by Lumel
0₫
Mã kho: 1236798
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Type | Analogue, Binary |
| Supply Voltage | 85 253 V ac/dc |
| Size | 96 x 96mm |
| Number of Outputs | 3 |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | +50°C |
| Temperature Range | -200 +850 (PT100) °C, -200 +850 (PT1000) °C, -200 +850 (PT500) °C, -100 +1000 (Type E Thermocouple) °C, -100 +1200 (Type J Thermocouple) °C, -100 +1300 (Type N Thermocouple) °C, -100 +1372 (Type K Thermocouple) °C, -100 +400 (Type T Thermocouple) °C, -60 +180 (PT100/1.617) °C, -50 +180 (PT100/1.426) °C, 0 +1767 (Type B Thermocouple) °C, 0 +1767 (Type R Thermocouple) °C, 0 +1767 (Type S Thermocouple) °C |
| Communication Module Available | Yes |
| Display Type | TFT |
| IP Rating | IP20, IP65 |
| Termination Type | Screw |
| Series | RE92 |
| Input Type | B Thermocouple, E Thermocouple, J Thermocouple, K Thermocouple, N Thermocouple, PT100, PT100/1.426, PT100/1.617, PT1000, PT500, R Thermocouple, S Thermocouple, T Thermocouple |
| Panel Depth | 69mm |
| Mounting Type | Panel Mount |
| Display Colour | Green, Red, White |
