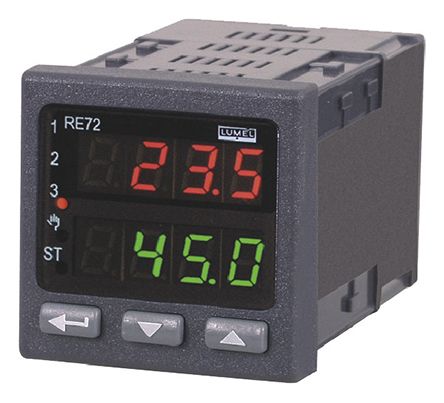

Lumel RE72 Panel Mount PID Temperature Controller, 48 x 48mm, 2 Output: 1x Relay, 1x Logic [RE72 122200E0]; 894-7008
by Lumel
0₫
Mã kho: 8947008
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Type | Relay, Voltage |
| Supply Voltage | 2 40 V ac/dc |
| Size | 48 x 48mm |
| Number of Outputs | 2 |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | +50°C |
| Temperature Range | -200 +850 (PT100) °C, -200 +850 (PT1000) °C, -100 +1000 (Type E Thermocouple) °C, -100 +1200 (Type J Thermocouple) °C, -100 +1300 (Type N Thermocouple) °C, -100 +1372 (Type K Thermocouple) °C, -100 +400 (Type T Thermocouple) °C, -100 +800 (Type L Thermocouple) °C, 0 +1767 (Type R Thermocouple) °C, 0 +1767 (Type S Thermocouple) °C, +200 +1767 (Type B Thermocouple) °C |
| Communication Module Available | Yes |
| Display Type | Digital |
| IP Rating | IP20, IP65 |
| Termination Type | Screw |
| Panel Depth | 93mm |
| Series | RE72 |
| Display Colour | Green, Red |
| Mounting Type | Panel Mount |
| Input Type | PT100, PT1000, Type B Thermocouple, Type E Thermocouple, Type J Thermocouple, Type K Thermocouple, Type L Thermocouple, Type N Thermocouple, Type R Thermocouple, Type S Thermocouple, Type T Thermocouple |
