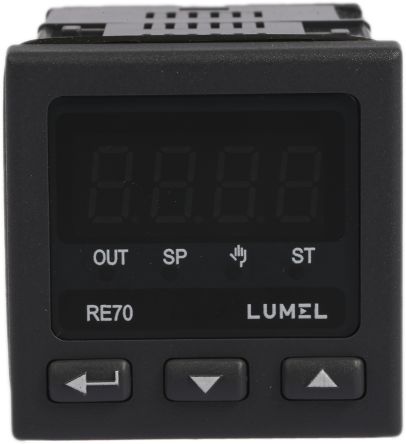

Lumel RE70 Panel Mount PID Temperature Controller, 48 x 48mm 1 Input, 1 Output Relay, 230 V ac Supply Voltage [RE70 00E0]; 894-6991
by Lumel
0₫
Mã kho: 8946991
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Type | Relay |
| Supply Voltage | 230 V ac |
| Size | 48 x 48mm |
| Number of Inputs | 1 |
| Number of Outputs | 1 |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | +50°C |
| Temperature Range | -200 → +850 (PT100) °C, -200 → +850 (PT1000) °C, -50 → +1200 (Type J Thermocouple) °C, -50 → +1300 (Type N Thermocouple) °C, -50 → +1372 (Type K Thermocouple) °C, -50 → +400 (Type T Thermocouple) °C, 0 → +1767 (Type B Thermocouple) °C, 0 → +1767 (Type R Thermocouple) °C, 0 → +1767 (Type S Thermocouple) °C |
| Display Type | LED |
| IP Rating | IP20, IP65 |
| Panel Depth | 93mm |
| Display Colour | Red |
| Input Type | -200 → +850 (PT1000), -50 → +1200 (Type J Thermocouple), -50 → +1300 (Type N Thermocouple), -50 → +1372 (Type K Thermocouple), -50 → +400 (Type T Thermocouple), 0 → +1767 (Type B Thermocouple), 0 → +1767 (Type R Thermocouple), 0 → +1767 (Type S Thermocouple), PT100, PT1000, Type B Thermocouple, Type J Thermocouple, Type K Thermocouple, Type N Thermocouple-200 → +850 (PT100), Type R Thermocouple, Type S Thermocouple, Type T Thermocouple |
| Series | RE70 |
| Termination Type | Screw |
| Mounting Type | Panel Mount |
