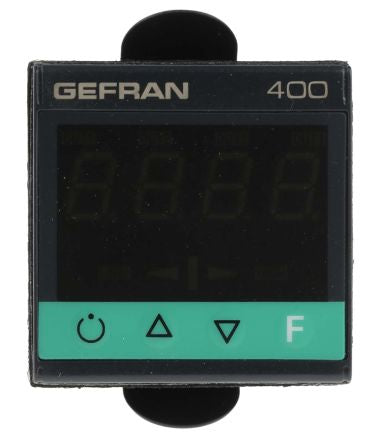

Gefran 400 PID Temperature Controller, 48 x 48 (1/16 DIN)mm, 2 Output Logic, Relay [400-DR-0-000]; 798-4025
by Gefran
0₫
Mã kho: 7984025
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Type | Logic, Relay |
| Supply Voltage | 11 → 27 V ac/dc |
| Size | 48 x 48 (1/16 DIN)mm |
| Number of Outputs | 2 |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | +50°C |
| Temperature Range | -200 → +400 (Type T Thermocouple) °C, -200 → +600 (RTD 3 Wires - PT100) °C, -100 → +750 (Type E Thermocouple) °C, -55 → +120 (PTC) °C, 0 → +1000 (Type J Thermocouple) °C, 0 → +1300 (Type K Thermocouple) °C, 0 → +1300 (Type N Thermocouple) °C, 0 → +1750 (Type R Thermocouple) °C, 0 → +1750 (Type S Thermocouple) °C, 44 → +1800 (Type B Thermocouple) °C |
| Display Type | Single |
| IP Rating | IP65 |
| Range | Gefran 400 |
| Display Colour | Green |
| Panel Depth | 99mm |
| Series | 400 |
