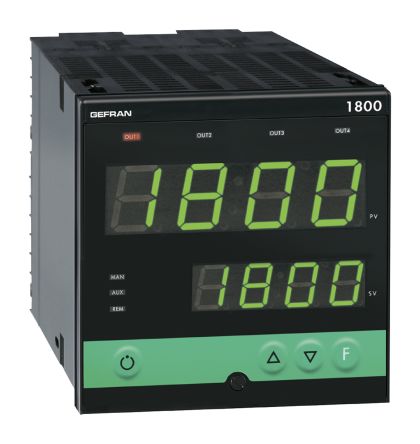

Gefran 1800 PID Temperature Controller, 96 x 96 (1/4 DIN)mm, 4 Output Analogue, Relay, 100 V ac, 240 V ac Supply Voltage [1800-RRR0I0-1121-000]; 437-0959
by Gefran
0₫
Mã kho: 4370959
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Output Type | Analogue, Relay |
Supply Voltage | 100 V ac, 240 V ac |
Size | 96 x 96 (1/4 DIN)mm |
Number of Outputs | 4 |
Minimum Operating Temperature | 0°C |
Maximum Operating Temperature | +50°C |
Temperature Range | -200 +400 (Type T Thermocouple - Cu-CuNi - Input) °C, -200 +600 (JPT100 - RTD 3 Wires - Input) °C, -200 +850 (PT100 - RTD 3 Wires - Input) °C, -100 +750 (Type E Thermocouple - NiCr-CuNi - Input) °C, -55 +120 (PTC - Input) °C, 0 +1000 (Type J Thermocouple) °C, 0 +1100 (Ni-Ni-Mo Type - Input) °C, 0 +1300 (Type K Thermocouple - NiCr-Ni - Input) °C, 0 +1300 (Type N Thermocouple - NiCrSi-NiSi - Input) °C, 0 +1750 (Type R Thermocouple - Pt13Rh-Pt - Input) °C, 0 +1750 (Type S Thermocouple - Pt10Rh-Pt - Input) °C, 0 +600 (L-GOST - NiCr-CuNiType - Input) °C, +44 +1800 (Type B Thermocouple) °C |
Control Type | ON/OFF |
Communication Module Available | Yes |
Display Type | LED, Multi Line |
IP Rating | IP65 |
Range | Gefran 1800 |
Series | 1800 |
Panel Depth | 113mm |
Display Colour | Green |
