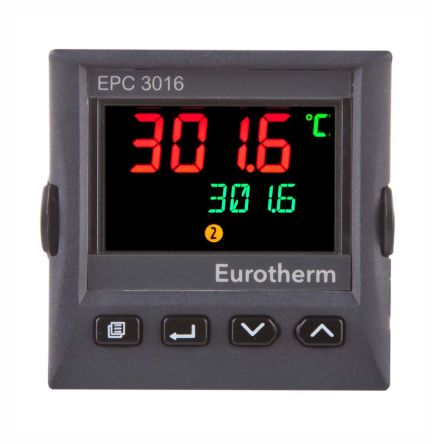

Eurotherm EPC3016 Panel Mount PID Temperature Controller, 48 x 48mm 1 Input, 3 Output Relay [EPC3016/CC/VH/R2/R2]; 144-9293
by Eurotherm
0₫
Mã kho: 1449293
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Output Type | Relay |
Supply Voltage | 100 230 V ac |
Size | 48 x 48mm |
Number of Inputs | 1 |
Number of Outputs | 3 |
Minimum Operating Temperature | 0°C |
Maximum Operating Temperature | +55°C |
Temperature Range | 0 +55 °C |
Control Type | Controller |
Communication Module Available | Yes |
Display Type | LCD |
IP Rating | IP65 |
Range | EPC3000 |
Input Type | Current & Voltage, MV Input, Resistance Thermometer, Thermocouple |
Series | EPC3016 |
Panel Depth | 48mm |
Termination Type | Screw |
Mounting Type | Panel Mount |
