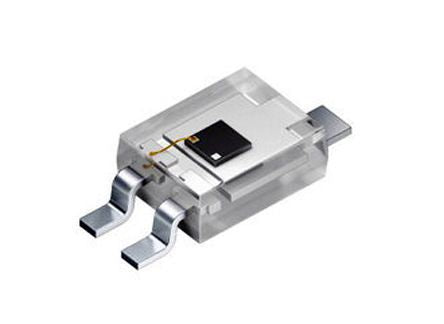

SFH 3410-2/3-Z Osram Opto 120 ° Full Spectrum Phototransistor, Surface Mount 3-Pin DIP package [SFH 3410-2/3-Z]; 912-8542
0₫
Mã kho: 9128542
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Spectrums Detected | Infrared, Ultraviolet, Visible Light |
| Number of Channels | 1 |
| Maximum Light Current | 16µA |
| Maximum Dark Current | 3nA |
| Angle of Half Sensitivity | 120 ° |
| Polarity | NPN |
| Number of Pins | 3 |
| Mounting Type | Surface Mount |
| Package Type | DIP |
| Dimensions | 2.1 x 2.7 x 1.05mm |
| Collector Current | 20mA |
| Length | 2.1mm |
| Width | 2.7mm |
| Height | 1.05mm |
| Minimum Wavelength Detected | 350nm |
| Maximum Wavelength Detected | 970nm |
