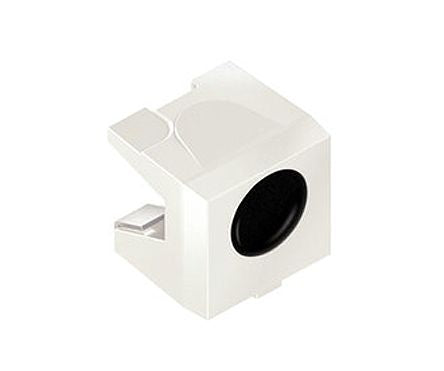

SFH 325 FA-3/4-Z Osram Opto SIDELED 120 ° IR Phototransistor, Surface Mount 2-Pin PLCC package [SFH 325 FA-3/4-Z]; 168-5306
0₫
Mã kho: 1685306
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Spectrums Detected | Infrared |
| Typical Fall Time | 7µs |
| Typical Rise Time | 7µs |
| Number of Channels | 1 |
| Maximum Light Current | 80µA |
| Maximum Dark Current | 50nA |
| Angle of Half Sensitivity | 120 ° |
| Polarity | NPN |
| Number of Pins | 2 |
| Mounting Type | Surface Mount |
| Package Type | PLCC |
| Dimensions | 4.2 x 4.2 x 3.8mm |
| Collector Current | 15mA |
| Series | SIDELED |
| Spectral Range of Sensitivity | 750 → 1120 nm |
| Maximum Wavelength Detected | 1120nm |
| Length | 4.2mm |
| Height | 3.8mm |
| Width | 4.2mm |
| Minimum Wavelength Detected | 750nm |
