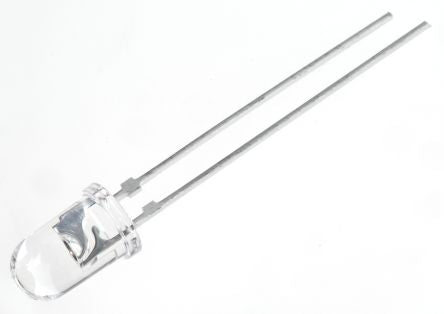

SFH 300 Osram Opto 50 ° IR + Visible Light Phototransistor, Through Hole 2-Pin 5mm (T-1 3/4) package [SFH 300]; 146-1622
0₫
Mã kho: 1461622
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Spectrums Detected | Infrared, Visible Light |
| Typical Fall Time | 10µs |
| Typical Rise Time | 10µs |
| Number of Channels | 1 |
| Maximum Dark Current | 50nA |
| Angle of Half Sensitivity | 50 ° |
| Polarity | NPN |
| Number of Pins | 2 |
| Mounting Type | Through Hole |
| Package Type | 5mm (T-1 3/4) |
| Dimensions | 5.9 x 5.9 x 9mm |
| Collector Current | 50mA |
| Spectral Range of Sensitivity | 450 → 1100 nm |
| Height | 9mm |
| Maximum Wavelength Detected | 1100nm |
| Minimum Wavelength Detected | 450nm |
| Length | 5.9mm |
| Width | 5.9mm |
