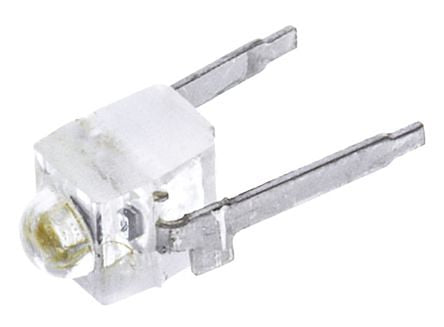

BPX 81-3/4 Osram Opto BPX 81 ±18 ° Phototransistor, Through Hole 2-Pin Miniature Array package [BPX 81-3/4]; 136-9672
0₫
Mã kho: 1369672
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Typical Fall Time | 6µs |
| Typical Rise Time | 6µs |
| Number of Channels | 1 |
| Maximum Light Current | >400µA |
| Maximum Dark Current | 1 (≤ 50)nA |
| Angle of Half Sensitivity | ±18 ° |
| Polarity | NPN |
| Number of Pins | 2 |
| Mounting Type | Through Hole |
| Package Type | Miniature Array |
| Dimensions | 2.2 x 2 x 3.45mm |
| Collector Current | 50mA |
| Width | 2mm |
| Linearity | High |
| Series | BPX 81 |
| Minimum Wavelength Detected | 450nm |
| Height | 3.45mm |
| Saturation Voltage | 150mV |
| Maximum Wavelength Detected | 1100nm |
| Collector Emitter Voltage | 35V |
| Emitter Collector Voltage | 7V |
| Spectral Range of Sensitivity | 450 → 1100 nm |
| Length | 2.2mm |
