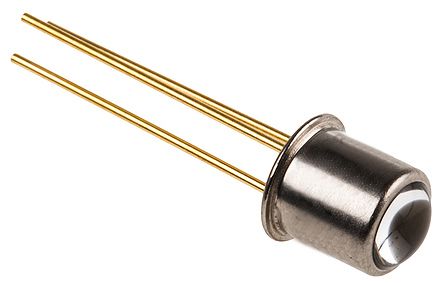

BPX 38-4 Osram Opto ±40 ° IR Phototransistor, Through Hole 3-Pin TO-18 package [BPX 38-4]; 168-5550
0₫
Mã kho: 1685550
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Spectrums Detected | Infrared |
| Typical Fall Time | 15µs |
| Typical Rise Time | 15µs |
| Number of Channels | 1 |
| Maximum Light Current | 2300µA |
| Maximum Dark Current | 20 (≤ 100)nA |
| Angle of Half Sensitivity | ±40 ° |
| Polarity | NPN |
| Number of Pins | 3 |
| Mounting Type | Through Hole |
| Package Type | TO-18 |
| Dimensions | 4.8 (Dia.) x 5.5mm |
| Collector Current | 50mA |
| Diameter | 4.8mm |
| Spectral Range of Sensitivity | 450 → 1120 nm |
| Minimum Wavelength Detected | 450nm |
| Height | 5.5mm |
| Maximum Wavelength Detected | 1120nm |
| Saturation Voltage | 200mV |
