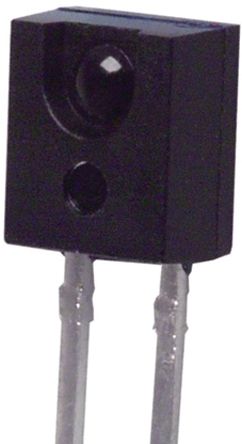

QSE114 ON Semiconductor, 25 ° IR Phototransistor, Through Hole 2-Pin Side Looker package [QSE114]; 166-1947
0₫
Mã kho: 1661947
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Spectrums Detected | Infrared |
| Typical Fall Time | 8µs |
| Typical Rise Time | 8µs |
| Number of Channels | 1 |
| Maximum Dark Current | 100nA |
| Angle of Half Sensitivity | 25 ° |
| Number of Pins | 2 |
| Mounting Type | Through Hole |
| Package Type | Side Looker |
| Dimensions | 4.44 x 2.54 x 5.08mm |
| Collector Current | 1.50mA |
| Length | 4.44mm |
| Spectral Range of Sensitivity | 880 nm |
| Maximum Wavelength Detected | 880nm |
| Height | 5.08mm |
| Width | 2.54mm |
