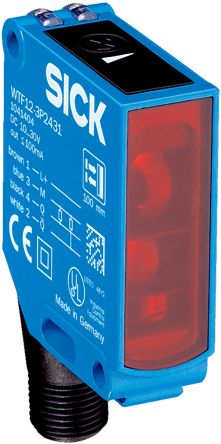

Sick Diffuse Photoelectric Sensor 30 → 175 mm Detection Range PNP-NO/NC IP66, IP67, IP69K Block Style [WTF12-3P2431]; 121-2720
by Sick
0₫
Mã kho: 1212720
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Sensor Style | Block |
| Detection Type | Diffuse |
| Detection Range | 30 → 175 mm |
| Output Type | PNP |
| Electrical Connection | 4-Pin M12 Connector |
| Maximum DC Voltage | 30V |
| Terminal Type | M12 |
| Light Source | LED |
| IP Rating | IP66, IP67, IP69K |
| Maximum Current | 45 mA |
| Response Time | 330 μs |
| Housing Material | Metal |
| Mounting Type | Panel Mount |
| Minimum Operating Temperature | -40°C |
| Series | W12-3 |
| Standards Met | CE Certified, CULus Listed, UL NRKH.E181493, UL NRKH7.E181493 |
| Maximum Operating Temperature | +60°C |
