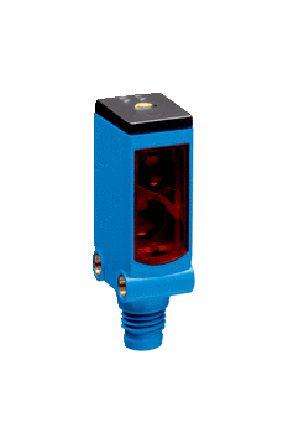

Sick Background Suppression Photoelectric Sensor 4 → 180 mm Detection Range PNP IO-Link IP66, IP67 Block Style [WTB4SC-3P2262A71]; 111-3699
by Sick
0₫
Mã kho: 1113699
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Sensor Style | Block |
| Detection Type | Background Suppression |
| Detection Range | 4 → 180 mm |
| Output Type | PNP |
| Electrical Connection | 4-Pin M8 Connector |
| Communication Protocol | IO-LINK |
| Maximum DC Voltage | 30V |
| Terminal Type | 4-Pin M8 Connector |
| Light Source | LED |
| IP Rating | IP66, IP67 |
| Maximum Current | 100 mA |
| Response Time | 280 → 410 μs |
| Interface | IO-Link |
| Housing Material | ABS Plastic |
| Minimum Operating Temperature | -40°C |
| Standards Met | CE Certified, UL Listed |
| Series | W4S-3 |
| Maximum Operating Temperature | +60°C |
| Mounting Type | Panel Mount |
