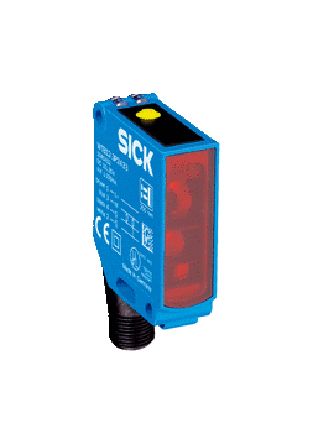

Sick Retro-Reflective Photoelectric Sensor 0 → 4 m Detection Range PNP IO-Link IP66, IP67 Block Style [WL12GC-3P2472A71]; 111-3702
by Sick
0₫
Mã kho: 1113702
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Sensor Style | Block |
| Detection Type | Retroreflective |
| Detection Range | 0 → 4 m |
| Output Type | PNP |
| Electrical Connection | 4-Pin M12 Connector |
| Maximum DC Voltage | 30V |
| Communication Protocol | IO-LINK |
| Terminal Type | 4-Pin M12 Connector |
| Light Source | LED |
| IP Rating | IP66, IP67 |
| Maximum Current | 100 mA |
| Response Time | 250 → 350 μs |
| Interface | IO-Link |
| Housing Material | Die Cast Zinc |
| Standards Met | CE Certified, CULus Listed |
| Series | W12G |
| Mounting Type | Panel Mount |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +60°C |
