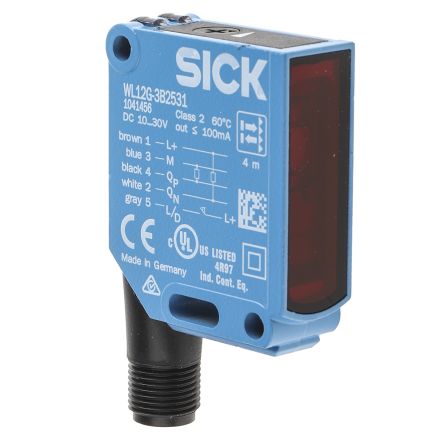

Sick Retro-Reflective Photoelectric Sensor 4 m Detection Range NPN & PNP-NC\NO IP69K Block Style WL12G-3B2531 [WL12G-3B2531]; 458-844
by Sick
0₫
Mã kho: 458844
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Sensor Style | Block |
| Detection Type | Retroreflective |
| Detection Range | 4 m |
| Output Type | NPN/PNP |
| Electrical Connection | 5-Pin M12 Connector |
| Maximum DC Voltage | 30V |
| Light Source | LED |
| IP Rating | IP69K |
| Maximum Current | 100 mA |
| Response Time | <=330 μs |
| Housing Material | Metal |
| Mounting Type | Panel Mount |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +60°C |
| Series | W12G |
