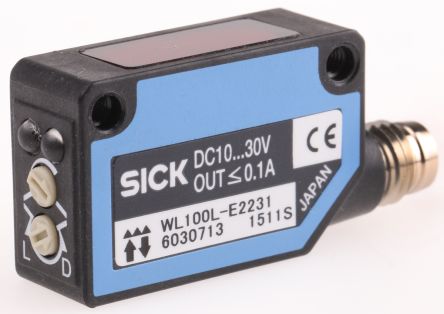

Sick Retro-Reflective Photoelectric Sensor 0.08 → 12 m Detection Range NPN IP65 Block Style WL100L-E2231 [WL100L-E2231]; 218-939
by Sick
0₫
Mã kho: 218939
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Sensor Style | Block |
Detection Type | Retroreflective |
Detection Range | 0.08 → 12 m |
Output Type | NPN |
Electrical Connection | 4-Pin M8 Connector |
Maximum DC Voltage | 30V |
Light Source | Laser Light |
IP Rating | IP65 |
Maximum Current | 100 mA |
Response Time | <0.25 ms |
Housing Material | ABS, PMMA |
Mounting Type | Panel Mount |
Minimum Operating Temperature | -10°C |
Maximum Operating Temperature | +50°C |
Series | W100 Laser |
