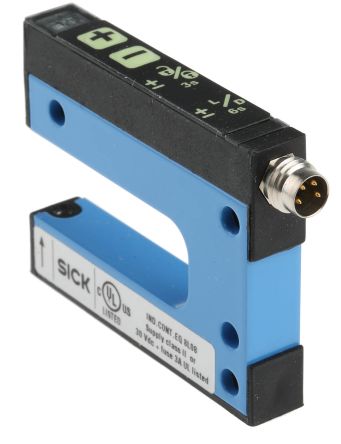

Sick Through Beam (Fork) Photoelectric Sensor 15 mm Detection Range NPN & PNP-NC\NO IP65 Fork Style WF15-40B410 [WF15-40B410]; 493-7322
by Sick
0₫
Mã kho: 4937322
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Sensor Style | Fork |
| Detection Type | Through Beam (Fork) |
| Detection Range | 15 mm |
| Output Type | NPN/PNP |
| Electrical Connection | 4-Pin M8 Connector |
| Maximum DC Voltage | 30V |
| Light Source | Infrared |
| IP Rating | IP65 |
| Maximum Current | 100 mA |
| Response Time | 100 μs |
| Housing Material | Aluminium |
| Series | WF |
| Mounting Type | Panel Mount |
| Maximum Operating Temperature | +60°C |
| Minimum Operating Temperature | -20°C |
