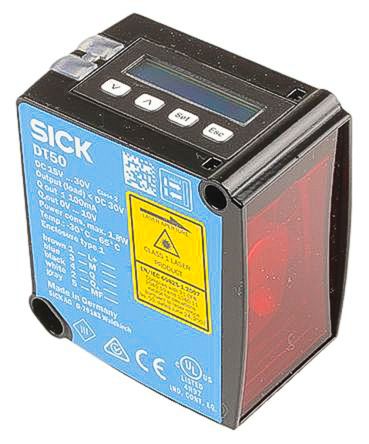

Sick Background Suppression Distance Sensor 200 → 10000 mm Detection Range Analogue IP65 Block Style DT50-P1123 [DT50-P1123]; 784-6692
by Sick
0₫
Mã kho: 7846692
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Sensor Style | Block |
Detection Type | Background Suppression |
Detection Range | 200 → 10000 mm |
Output Type | Analogue |
Electrical Connection | 5-Pin M12 Connector |
Maximum DC Voltage | 30V |
Light Source | Laser Light |
IP Rating | IP65 |
Maximum Current | 100 mA |
Response Time | 20 ms, 30 ms |
Housing Material | Die Cast Zinc, PMMA |
Mounting Type | Panel Mount |
Minimum Operating Temperature | -30°C |
Maximum Operating Temperature | +65°C |
Series | Dx50 |
