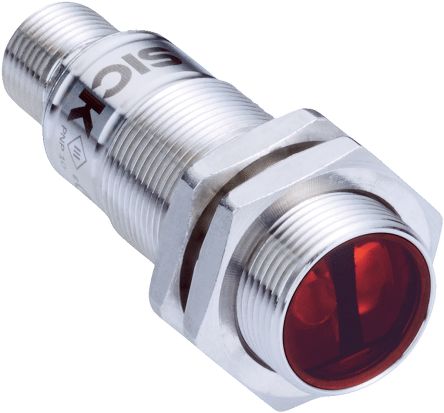

Sick Retroreflective Photoelectric Sensor 0.06 → 6 m Detection Range PNP IP67 1085706 [1085706]; 184-6320
by Sick
0₫
Mã kho: 1846320
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Sensor Style | Cylindrical |
| Detection Type | Retroreflective |
| Detection Range | 60 mm → 6 m |
| Output Type | PNP |
| Electrical Connection | M12-4 Pin Connector |
| Maximum DC Voltage | 30V |
| Terminal Type | M12 |
| Light Source | LED |
| IP Rating | IP67 |
| Maximum Current | 30 mA |
| Response Time | <500 μs |
| Housing Material | Stainless Steel |
| Mounting Type | Threaded |
| Minimum Operating Temperature | -25°C |
| Standards Met | CE Certified, CULus Listed |
| Series | GR18 Inox |
| Maximum Operating Temperature | +55°C |
