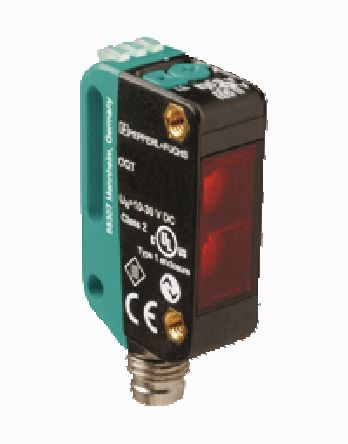

Pepperl + Fuchs Background Suppression Photoelectric Sensor 5 → 150 mm Detection Range NPN-NO, PNP-NC, Push Pull [OQT150-R100-2EP-IO-V31]; 124-0327
0₫
Mã kho: 1240327
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Sensor Style | Block |
| Detection Type | Background Suppression |
| Detection Range | 5 → 150 mm |
| Output Type | NPN/PNP |
| Electrical Connection | 4-Pin M8 Connector |
| Communication Protocol | IO-LINK |
| Maximum DC Voltage | 30V |
| Terminal Type | 4-Pin Connector |
| Light Source | LED |
| IP Rating | IP67, IP69, IP69K |
| Maximum Current | 100 mA |
| Interface | IO-Link |
| Response Time | 2.3 ms |
| Housing Material | PC |
| Maximum Operating Temperature | +60°C |
| Mounting Type | Panel Mount |
| Minimum Operating Temperature | -40°C |
| Standards Met | CE, CULus, E 87056, EMC Directive 2004/108/EC, EN 60947-5-2:2007, EN 61131-9:2013, EN 62471:2008, IEC 60947-5-2:2007, IEC 61131-9:2013, UL 60947-5-2: 2014 |
| Series | OQT150 |
