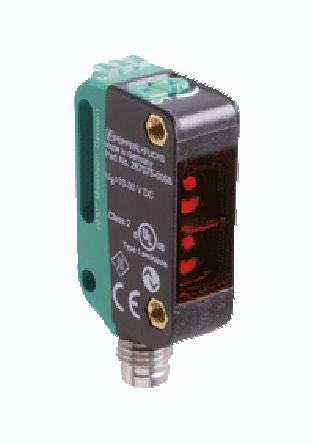

Pepperl + Fuchs Retro-Reflective Photoelectric Sensor 0 → 7.5 m Detection Range NPN-NO/NC, PNP-NO/NC, Push Pull [OBR7500-R100-2EP-IO-V31]; 124-0321
0₫
Mã kho: 1240321
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Sensor Style | Block |
Detection Type | Retroreflective |
Detection Range | 0 → 7.5 m |
Output Type | NPN/PNP |
Electrical Connection | 4-Pin M8 Connector |
Maximum DC Voltage | 30V |
Communication Protocol | IO-LINK |
Terminal Type | 4-Pin Connector |
Light Source | LED |
IP Rating | IP67, IP69, IP69K |
Maximum Current | 100 mA |
Interface | IO-Link |
Response Time | 0.5 ms |
Housing Material | PC |
Minimum Operating Temperature | -40°C |
Mounting Type | Panel Mount |
Standards Met | CE, CULus, E 87056, EN 60947-5-2:2007, EN 61131-9:2013, EN 62471:2008, IEC 60947-5-2:2007 |
Maximum Operating Temperature | +60°C |
Series | OBR7500 |
