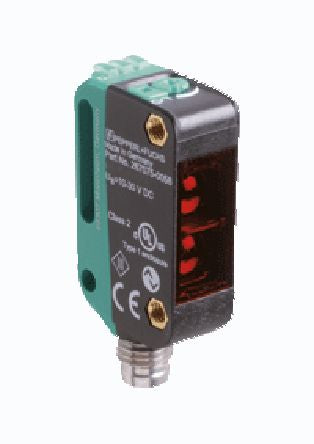

Pepperl + Fuchs Retro-Reflective Photoelectric Sensor 0 → 12 m Detection Range NPN-NO/NC, PNP-NO/NC, Push Pull [OBR12M-R100-2EP-IO-V31-L]; 124-0320
0₫
Mã kho: 1240320
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Sensor Style | Block |
Detection Type | Retroreflective |
Detection Range | 0 → 12 m |
Output Type | NPN/PNP |
Electrical Connection | 4-Pin M8 Connector |
Maximum DC Voltage | 30V |
Communication Protocol | IO-LINK |
Terminal Type | 4-Pin Connector |
Light Source | Laser Light |
IP Rating | IP67, IP69, IP69K |
Maximum Current | 100 mA |
Interface | IO-Link |
Response Time | 250 μs |
Housing Material | PC |
Minimum Operating Temperature | -40°C |
Mounting Type | Panel Mount |
Maximum Operating Temperature | +60°C |
Standards Met | CE, CULus, E 87056, EN 60825-1:2007, EN 60947-5-2:2007, EN 61131-9:2013, FDA, IEC 60825-1:2007, IEC 60947-5-2:2007, IEC 61131-9:2013, UL 60947-5-2: 2014 |
Series | OBR12M |
