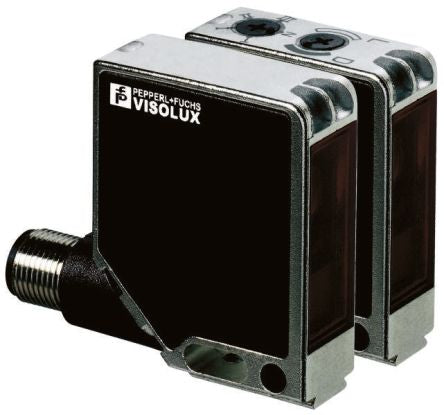

Pepperl + Fuchs Through Beam (Receiver) Photoelectric Sensor 0 → 16 (Effective) m Detection Range PNP IP67 Block [115970 MV12-F1/82b/124/128]; 898-6713
0₫
Mã kho: 8986713
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Sensor Style | Block |
Detection Type | Through Beam (Receiver) |
Detection Range | 0 → 16 m |
Output Type | PNP |
Electrical Connection | 5-Pin M12 Connector |
Maximum AC Voltage | 300V |
Maximum DC Voltage | 30V |
Terminal Type | M12 |
Light Source | LED |
IP Rating | IP67 |
Maximum Current | >45 mA |
Response Time | 0.5 ms |
Housing Material | Fibreglass Reinforced Plastic PC (Laterals) |
Mounting Type | Panel Mount |
Minimum Operating Temperature | -40°C |
Series | MV12 |
Standards Met | CCC, CE, CULus, EN 60947-5-2: 2007, EN/IEC 60068, EN/IEC 60068-2-6, IEC 60664-1, IEC 60947-5-2: 2007, UL |
Maximum Operating Temperature | +60°C |
