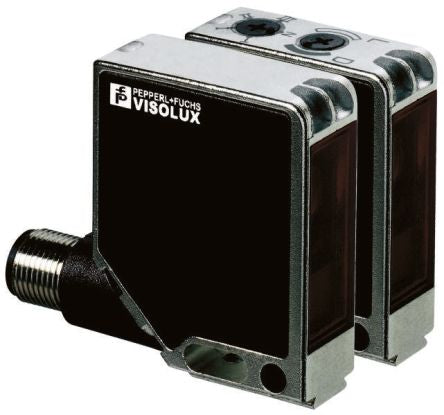

Pepperl + Fuchs Through Beam (Emitter) Photoelectric Sensor 0 → 16 (Effective) m Detection Range PNP IP67 Block [115969 M12-F1/76b/124]; 898-6719
0₫
Mã kho: 8986719
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Sensor Style | Block |
| Detection Type | Through Beam (Emitter) |
| Detection Range | 0 → 16 m |
| Output Type | PNP |
| Electrical Connection | 5-Pin M12 Connector |
| Maximum AC Voltage | 300V |
| Maximum DC Voltage | 30V |
| Terminal Type | M12 |
| Light Source | LED |
| IP Rating | IP67 |
| Maximum Current | >35 mA |
| Response Time | 0.5 ms |
| Housing Material | Fibreglass Reinforced Plastic PC (Laterals) |
| Series | M12 |
| Mounting Type | Panel Mount |
| Maximum Operating Temperature | +60°C |
| Standards Met | CCC, CE, CULus, EN 60947-5-2: 2007, EN/IEC 60068, EN/IEC 60068-2-6, IEC 60664-1, IEC 60947-5-2: 2007, UL |
| Minimum Operating Temperature | -40°C |
