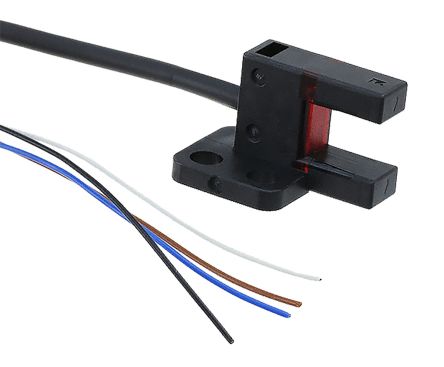

Panasonic Through Beam (Fork) Photoelectric Sensor 6 mm Detection Range PNP IP64 Fork Style PM-R45-P [PM-R45-P]; 125-4557
by Panasonic
0₫
Mã kho: 1254557
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Sensor Style | Fork |
| Detection Type | Through Beam (Fork) |
| Detection Range | 6 mm |
| Output Type | PNP |
| Electrical Connection | 1m Cable |
| Maximum DC Voltage | 24V |
| Terminal Type | Cable |
| Light Source | Infrared |
| IP Rating | IP64 |
| Maximum Current | 50 (Source Current) mA |
| Response Time | 20 (Received) μs, 80 (Interrupted) μs |
| Housing Material | PBT (Enclosure), Polycarbonate (Display Section) |
| Series | PM-45 |
| Standards Met | IEC |
| Mounting Type | Chassis Mount |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +55°C |
