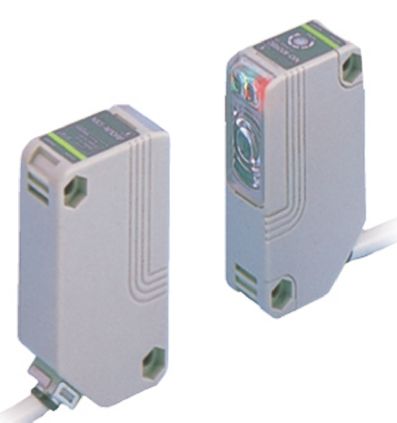

Panasonic Through Beam (Emitter and Receiver) Photoelectric Sensor 30 m Detection Range Relay IP66 Block Style NX5M30A [NX5M30A]; 431-1764
by Panasonic
0₫
Mã kho: 4311764
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Sensor Style | Block |
| Detection Type | Through Beam (Emitter and Receiver) |
| Detection Range | 30 m |
| Output Type | Relay |
| Electrical Connection | 3-Wire Cable 2m |
| Maximum AC Voltage | 250V |
| Maximum DC Voltage | 30V |
| Light Source | Infrared |
| IP Rating | IP66 |
| Response Time | <=10 ms |
| Housing Material | PC |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +55°C |
