![Panasonic HG-C1100 8777408](http://nguyenxuong.com/cdn/shop/products/R8777408-01_296x445.jpg?v=1594025190)

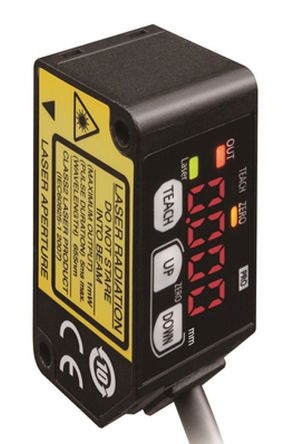

Panasonic Background Suppression Distance Sensor 100 mm Detection Range NPN IP67 Block Style HG-C1100 [HG-C1100]; 877-7408
by Panasonic
0₫
Mã kho: 8777408
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Sensor Style | Block |
Detection Type | Background Suppression |
Detection Range | 100 mm |
Output Type | NPN |
Electrical Connection | Cable |
Maximum DC Voltage | 24V |
Light Source | Laser Light |
IP Rating | IP67 |
Response Time | 1.5 (High Speed) ms, 5 (Standard) ms, 10 (High Precision) ms |
Housing Material | Acrylic (Front cover), Aluminum Die Cast |
Minimum Operating Temperature | -10°C |
Maximum Operating Temperature | +45°C |
Series | HG-C |
Mounting Type | Flange Mount |
Standards Met | EMC Directive, FDA |
