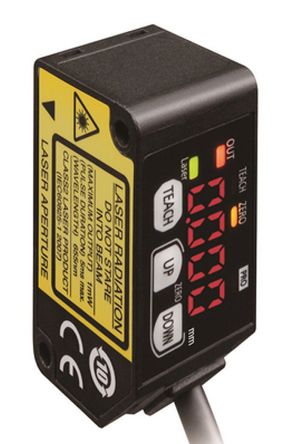

Panasonic Background Suppression Distance Sensor 30 mm Detection Range NPN IP67 Block Style HG-C1030 [HG-C1030]; 877-7395
by Panasonic
0₫
Mã kho: 8777395
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Sensor Style | Block |
| Detection Type | Background Suppression |
| Detection Range | 30 mm |
| Output Type | NPN |
| Electrical Connection | Cable |
| Maximum DC Voltage | 24V |
| Light Source | Laser Light |
| IP Rating | IP67 |
| Response Time | 1.5 (High Speed) ms, 5 (Standard) ms, 10 (High Precision) ms |
| Housing Material | Acrylic (Front cover), Aluminum Die Cast |
| Mounting Type | Flange Mount |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +45°C |
| Series | HG-C |
| Standards Met | EMC Directive, FDA |
