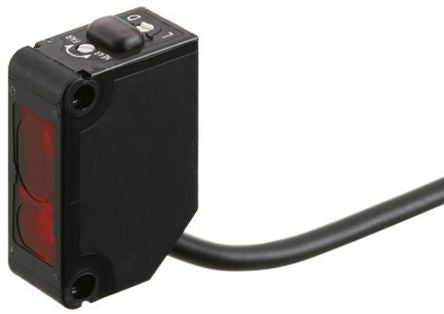

Panasonic Diffuse Photoelectric Sensor 20 → 300 mm Detection Range NPN IP67 Block Style CX-442 [CX-442]; 808-9199
by Panasonic
0₫
Mã kho: 8089199
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Sensor Style | Block |
| Detection Type | Diffuse |
| Detection Range | 20 → 300 mm |
| Output Type | NPN |
| Electrical Connection | 2m Cable |
| Maximum DC Voltage | 24V |
| Light Source | LED |
| IP Rating | IP67 |
| Maximum Current | 100 mA |
| Response Time | 1 ms |
| Housing Material | PBT |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +55°C |
| Series | CX-400 |
