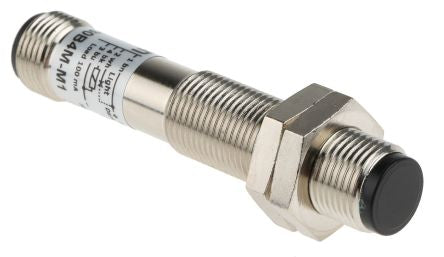

Omron Diffuse Photoelectric Sensor 300 mm Detection Range PNP IP67 Barrel Style E3H2-DS30B4M-M1 [E3H2-DS30B4M-M1]; 712-5484
by Omron
0₫
Mã kho: 7125484
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Sensor Style | Barrel |
| Detection Type | Diffuse |
| Detection Range | 300 mm |
| Output Type | PNP |
| Electrical Connection | M12 Connector |
| Maximum DC Voltage | 30V |
| Light Source | Infrared |
| IP Rating | IP67 |
| Maximum Current | 100 mA |
| Response Time | 1.1 ms |
| Housing Material | Nickel Plated Brass |
| Series | E3H2 |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +55°C |
