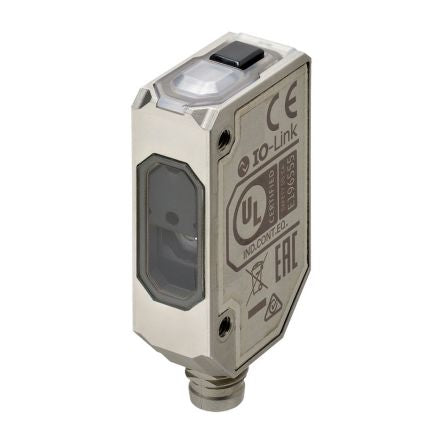

Photoelectric sensor NPN M8 4-pin [E3AS-F1500IMN M3]; 193-8348
by Omron
0₫
Mã kho: 1938348
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Sensor Style | Compact |
| Detection Type | Reflective |
| Detection Range | 50 → 1500 mm |
| Output Type | NPN |
| Electrical Connection | M8 Connector |
| Maximum DC Voltage | 30V |
| Communication Protocol | IO-LINK |
| Terminal Type | M8 Connector |
| Light Source | Infrared |
| IP Rating | IP67, IP67G, IP69K |
| Maximum Current | 30 mA |
| Interface | IO-Link |
| Response Time | 150 ms |
| Housing Material | Stainless Steel (SUS316L) |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +55°C |
| Series | E3AS-F |
