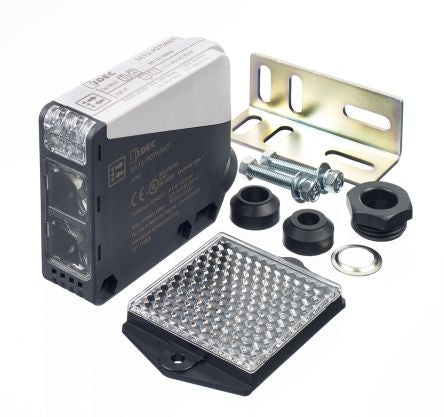

Idec Polarized Retroreflective Photoelectric Sensor 7 m Detection Range NPN/PNP IP67 Rectangular Style SA1U-P07MWT [SA1U-P07MWT]; 179-5338
by Idec
0₫
Mã kho: 1795338
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Sensor Style | Block |
| Detection Type | Retroreflective |
| Detection Range | 7 m |
| Output Type | NPN/PNP |
| Electrical Connection | 5-Terminal Screw |
| Maximum DC Voltage | 30V |
| Terminal Type | Spring Up |
| Light Source | LED |
| IP Rating | IP67 |
| Maximum Current | 100 mA |
| Response Time | 1 ms |
| Housing Material | PBT |
| Mounting Type | Flange Mount |
| Minimum Operating Temperature | -25°C |
| Series | SA1U |
| Maximum Operating Temperature | +60°C |
| Standards Met | CE Certified, CULus Listed |
