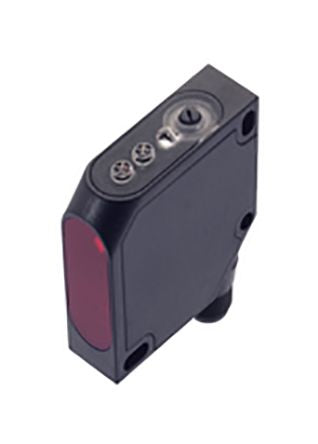

BALLUFF Diffuse Photoelectric Sensor 150 → 600 mm Detection Range PNP IP67 Block Style BOS 26K-PA-1LE-S4-C [BOS 26K-PA-1LE-S4-C]; 902-7196
by BALLUFF
0₫
Mã kho: 9027196
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Sensor Style | Block |
Detection Type | Diffuse |
Detection Range | 150 → 600 mm |
Output Type | PNP |
Electrical Connection | M12 Connector |
Maximum DC Voltage | 30V |
Terminal Type | Connector |
Light Source | LED |
IP Rating | IP67 |
Maximum Current | 200 mA |
Response Time | 0.625 ms |
Housing Material | Impact Resistant ABS |
Standards Met | CE, CULus |
Maximum Operating Temperature | +60°C |
Mounting Type | Panel Mount |
Series | BOS 26K |
Minimum Operating Temperature | -20°C |
