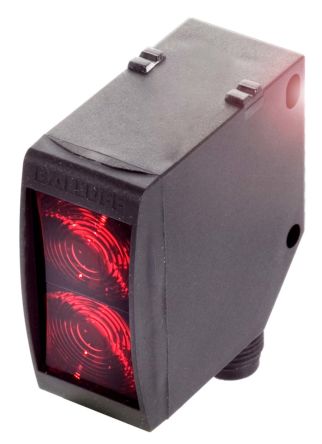

BALLUFF Through Beam (Emitter) Photoelectric Sensor 0 → 20 m Detection Range IO-Link IP6X, IPX6K Block Style BOS [BOS 23K-XI-RS11-S4]; 135-0295
by BALLUFF
0₫
Mã kho: 1350295
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Sensor Style | Block |
| Detection Type | Through Beam (Emitter) |
| Detection Range | 0 → 20 m |
| Electrical Connection | 4-Pin M12 Connector |
| Communication Protocol | IO-LINK |
| Maximum DC Voltage | 30V |
| Terminal Type | 4-Pin Connector |
| Light Source | LED |
| IP Rating | IP6X, IPX6K |
| Maximum Current | 30 mA |
| Interface | IO-Link |
| Housing Material | Polycarbonate/ABS Alloy |
| Mounting Type | Threaded |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +60°C |
| Standards Met | CE, ECOLAB, IEC 60947-5-2 |
| Series | BOS 23K |
