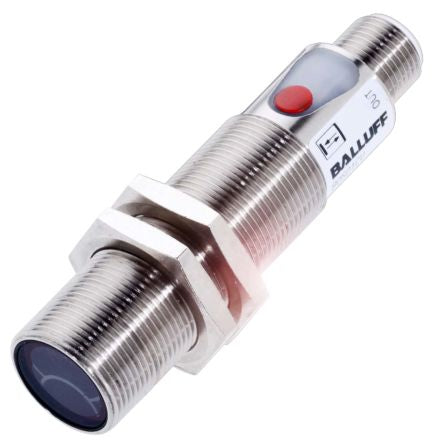

BALLUFF Through Beam (Emitter) Photoelectric Sensor 0 → 20 m Detection Range IO-Link IP67 Barrel Style BOS [BOS 18M-XI-RS30-S4]; 135-0289
by BALLUFF
0₫
Mã kho: 1350289
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Sensor Style | Barrel |
| Detection Type | Through Beam (Emitter) |
| Detection Range | 0 → 20 m |
| Electrical Connection | 4-Pin M12 Connector |
| Communication Protocol | IO-LINK |
| Maximum DC Voltage | 30V |
| Terminal Type | 4-Pin Connector |
| Light Source | LED |
| IP Rating | IP67 |
| Maximum Current | 40 mA |
| Interface | IO-Link |
| Housing Material | Brass |
| Mounting Type | Threaded |
| Minimum Operating Temperature | -5°C |
| Series | BOS 18M |
| Maximum Operating Temperature | +55°C |
| Standards Met | CE, CULus, IEC 60947-5-2 |
