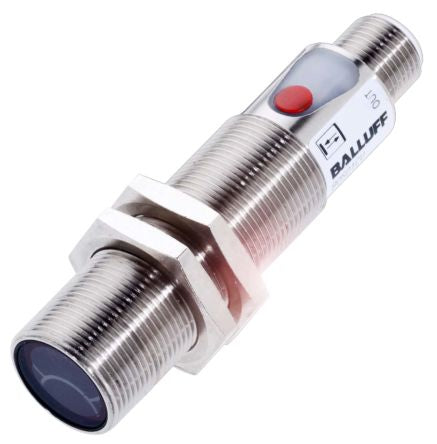

BALLUFF Diffuse Photoelectric Sensor 1 → 500 mm Detection Range PNP-NO/NC IO-Link IP67 Barrel Style BOS [BOS 18M-PI-RD30-S4]; 135-0286
by BALLUFF
0₫
Mã kho: 1350286
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Sensor Style | Barrel |
Detection Type | Diffuse |
Detection Range | 1 → 500 mm |
Output Type | PNP |
Electrical Connection | 4-Pin M12 Connector |
Communication Protocol | IO-LINK |
Maximum DC Voltage | 30V |
Terminal Type | 4-Pin Connector |
Light Source | LED |
IP Rating | IP67 |
Maximum Current | 40 mA |
Interface | IO-Link |
Housing Material | Brass |
Series | BOS 18M |
Maximum Operating Temperature | +55°C |
Standards Met | CE, CULus, IEC 60947-5-2 |
Minimum Operating Temperature | -5°C |
Mounting Type | Threaded |
